- Union Connectors are made as per API specification. It is interchangeable woth any OEM.
- The material for Seamless steel pipe conforms to the requirements of ASTM A106 Grade B.

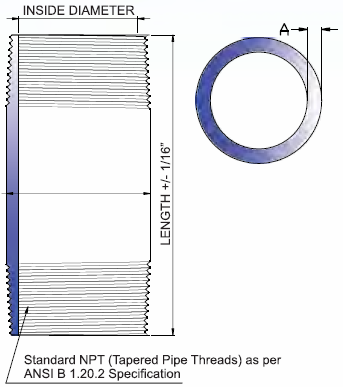

- Seamless Steel Nipple Design/Dimensions conform to ASTM A733. Contact UVI for exact dimensional information.
- NPT threads on Nipples conform to ASME B1.20.1. Threads are right hand on both the ends.
- The ends of the Nipple are chamfered on the outside at an angle of 35° +/- 10° to the central axis and free from burrs.
- Ends are cut square to the central axis.
- All nipples are stamped with heat code and material specifications.

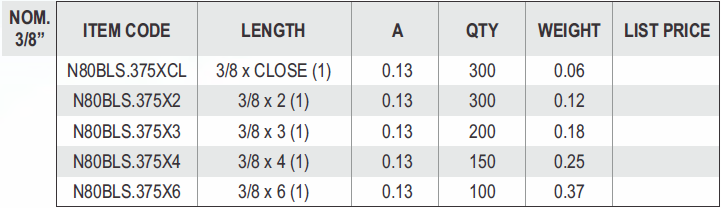

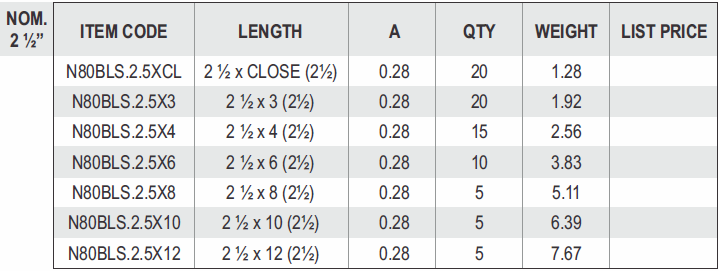

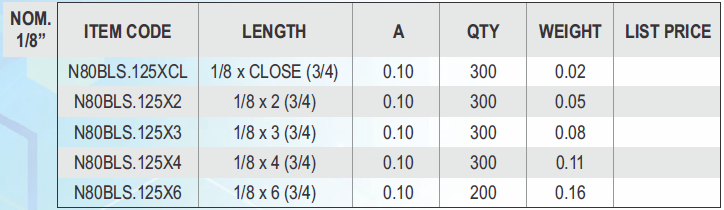

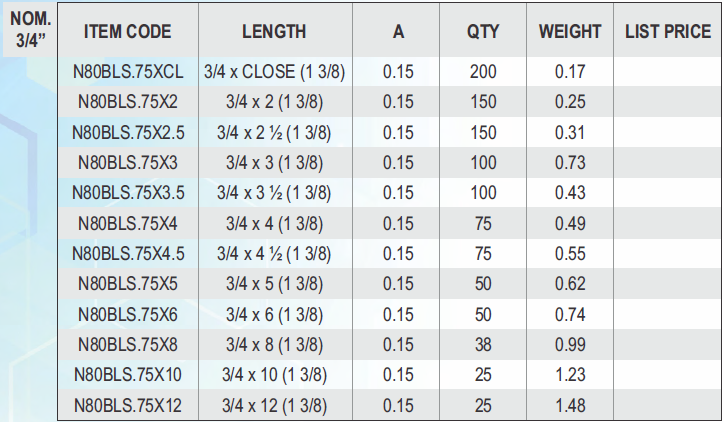

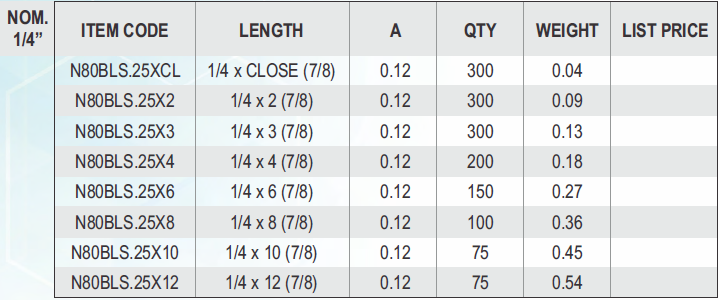

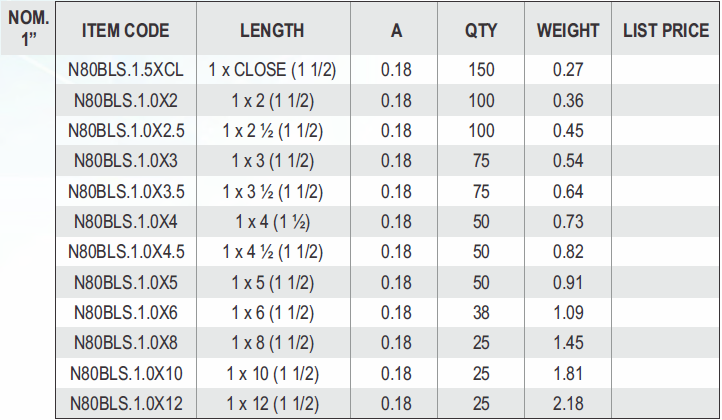

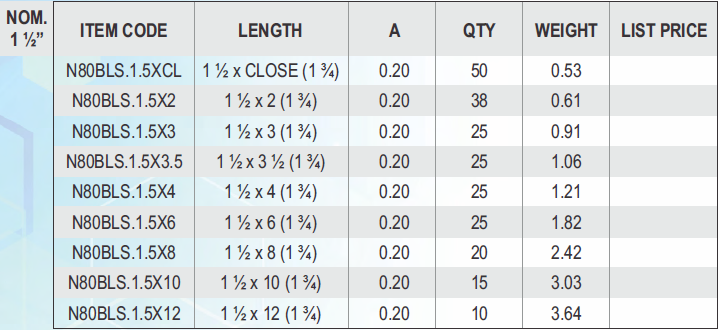

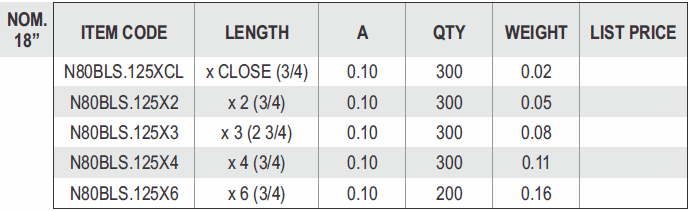

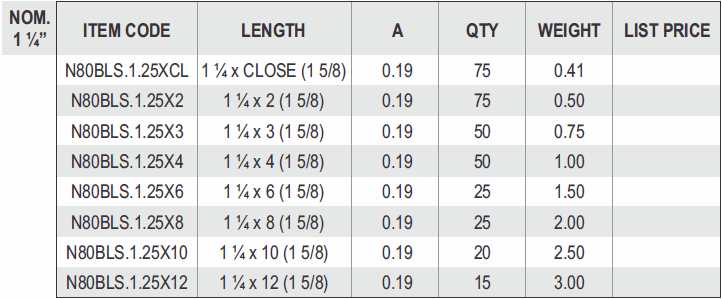

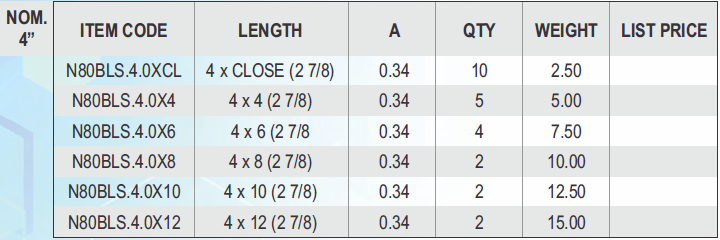

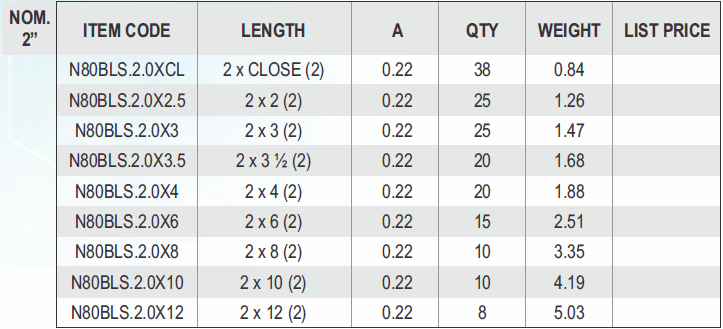

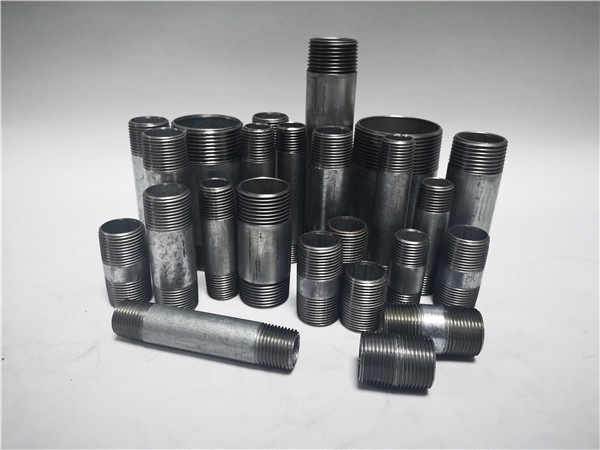

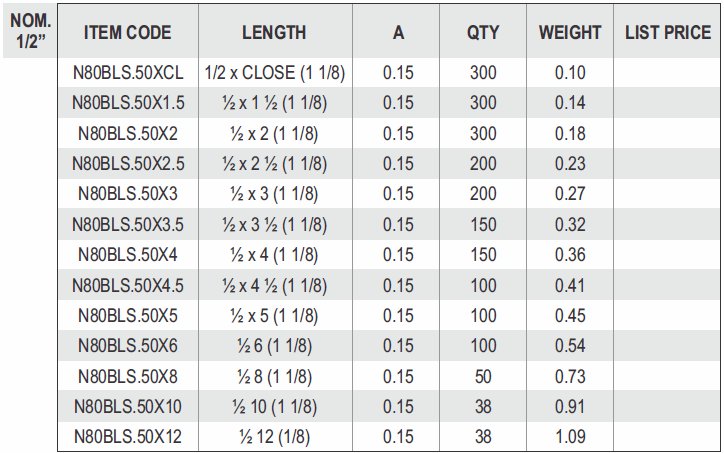

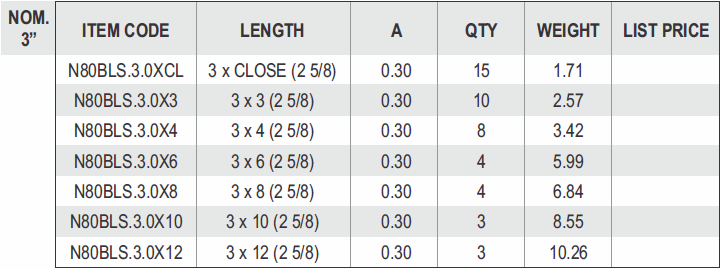

Schedule 80 / X Heavy Seamless Steel Pipe Nipples
Weight (LBS) - Dimensions (IN) -QTY (Case Quantity)
