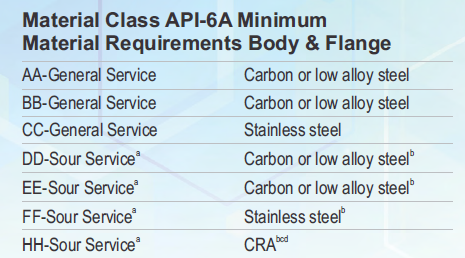

- As defined by NACE Standard MR0175/ISO 15156.
- In compliance with NACE Standard MR0175 / ISO 15156.
- CRA required on retained fluid wetted surfaces only; CRA cladding of low allow or stainless steel permitted.
- CRA as defined in API 6A latest edition. NACE MR0175 / ISO 15156 definition of CRA does not apply.

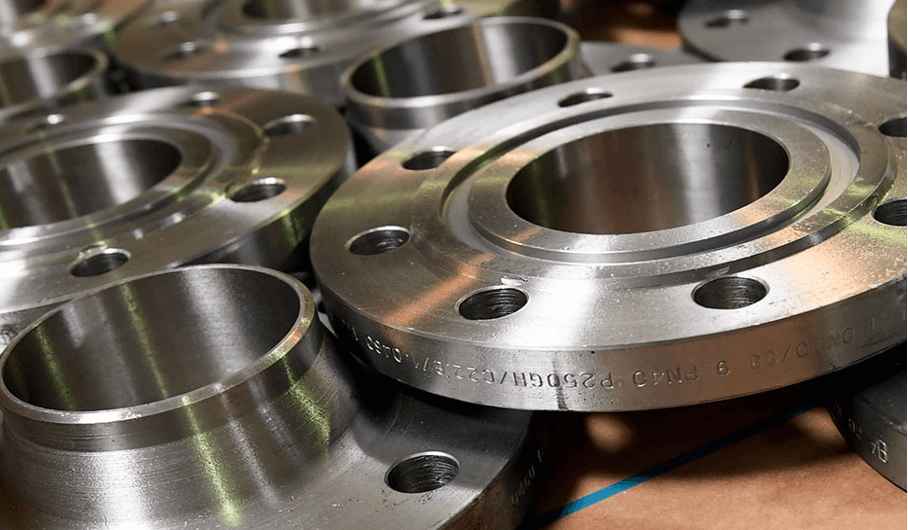

Blind Flange
Used to close off completely a flanged end or outlet connection. Can be use to stop the Flow in any directions.
API Specified 6B Weld Neck Flange
Have restricted bores to match standard pipe sizes and schedules. API Spec 6A Specified, 6 BX Weld Neck Flanges, have material and dimensions that conform to the requirements for full bore integral flanges. Customers can specify weld neck length as per their requirements.
Test Flange
A hole drilled and tapped into a Blind or Target flange which may allow application or pressure or attachment of a gauge.
Adapter Flange
Double studded adapter flanges, companion flanges, flange with union adapters. It can be use for transition in nominal size and/or pressure rating.
- NMT Engineering & Services Pvt. Ltd. can provide a wide range of Flanged or Studded connections, which includes, Double Sided Adapters (DSA's), Blinds Tests, Targets, Adapter Flanges, Unions and Welding Necks.
- All equipment conforming to API, ANSI, in line with specific Customer Requirements.
- Ring Grooves can be inlayed with a variety of stainless steels and high Nickel Alloys.
- Manufactured As per API-6APSL-1 thru PSL-3. Sour Service is available and all H2S service parts conform to the Latest NACE specifications.
Flange for Different Use
- ANSI/ASME Forged Flanges
- MSS-SP-44 Flanges/ANSI B 16.47 Series A API type 6A-RTJ Face Flanges
- API-605 Flanges/ANSI B 16.47 Series B
- ASME Boiler Code Flanges.
- CL. 125 Lightweight Flanges For low pressure applications.
- Plate Flanges - From 1/4" thru 8" Thick, Including AWWA C-207, and all other special designs.
- ANSI Long Weldnecks & Special Body Connectors Studding Outlets (pad flanges) - flat bottom or reduced to fit
- Special Ring Flanges
The difference between ASME/ANSI and API flanges is the fabrication material and the higher rated API operating pressure.
ASME/ANSI flanges are common in industrial process systems handling water, steam, air and gas.
API flanges are manufactured for high strength operating refinery systems with products such as oil and explosive gases.
The flange standards API 6A and ASME/ANSI B16.5 are similar dimensionally - but the API 6A flanges are rated for higher pressures.
Flange Material
- CARBON STEEL - ASTM/ASME SA-105, A-350 LF-2, LF-3, A694, SA-516-70, A36
- CHROME ALLOYS - A-182-F-1, F-5, F-6, F-9, F-91, F-11, F-12, F-22
- STAINLESS STEEL-A-182 - F-304, Dual Grade 304L, Dual Grade 316L, 316, 309, 310, 317L, 321, 347, 904L, Alloy 20, H grades
- ALUMINUM-3003
- HASTALLOY-B-2, 6061 C-276, G, X, C-22
- INCONEL-600, 601, 625, 718
- INCOLLOY-800, 825, 800H, 800HT
- MONEL-400
- COPPER-90/10 (C70600), 70/30 (C71500)
- Duplex-F51/2205, F53/2507
- TITANIUM - Gr2, Gr12
NMT Engineering & Services manufactures Drilling Spools and Spacer Spools in every size and pressure rating.
Drilling Spools usually have the same nominal end connections and the same nominal Outlet connections.
While Spacer Spools may have different connections. The connections can be studded or flanged.
Customers may specify any combination of end connections and outlet connections, as well as overall height or length and outlet extension.
All Drilling Spools & Spacer Spools are designed to have adequate clearance to accommodate wrenches, studs and nuts.
Manufactured as per API-6A PSL-1 thru PSL-3. Sour Service is available and conforms to the latest NACE specifications.
Ring Grooves can be inlayed with a variety of stainless steels and high Nickel Alloys.
